Dana 60 / Dana Super 60 / Ultimate Dana 60 Inner Pinion Bearing Set

  • $47.99
    Unit price per

Only 3 left!

Product Details:

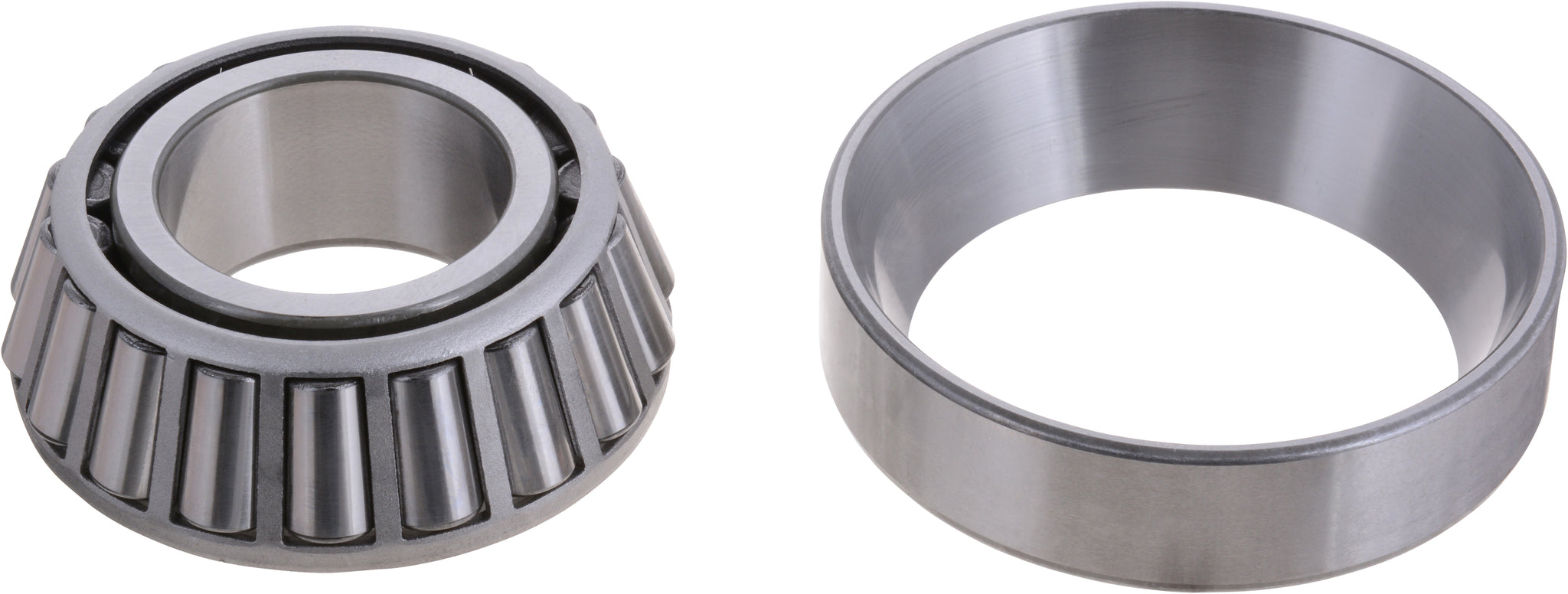

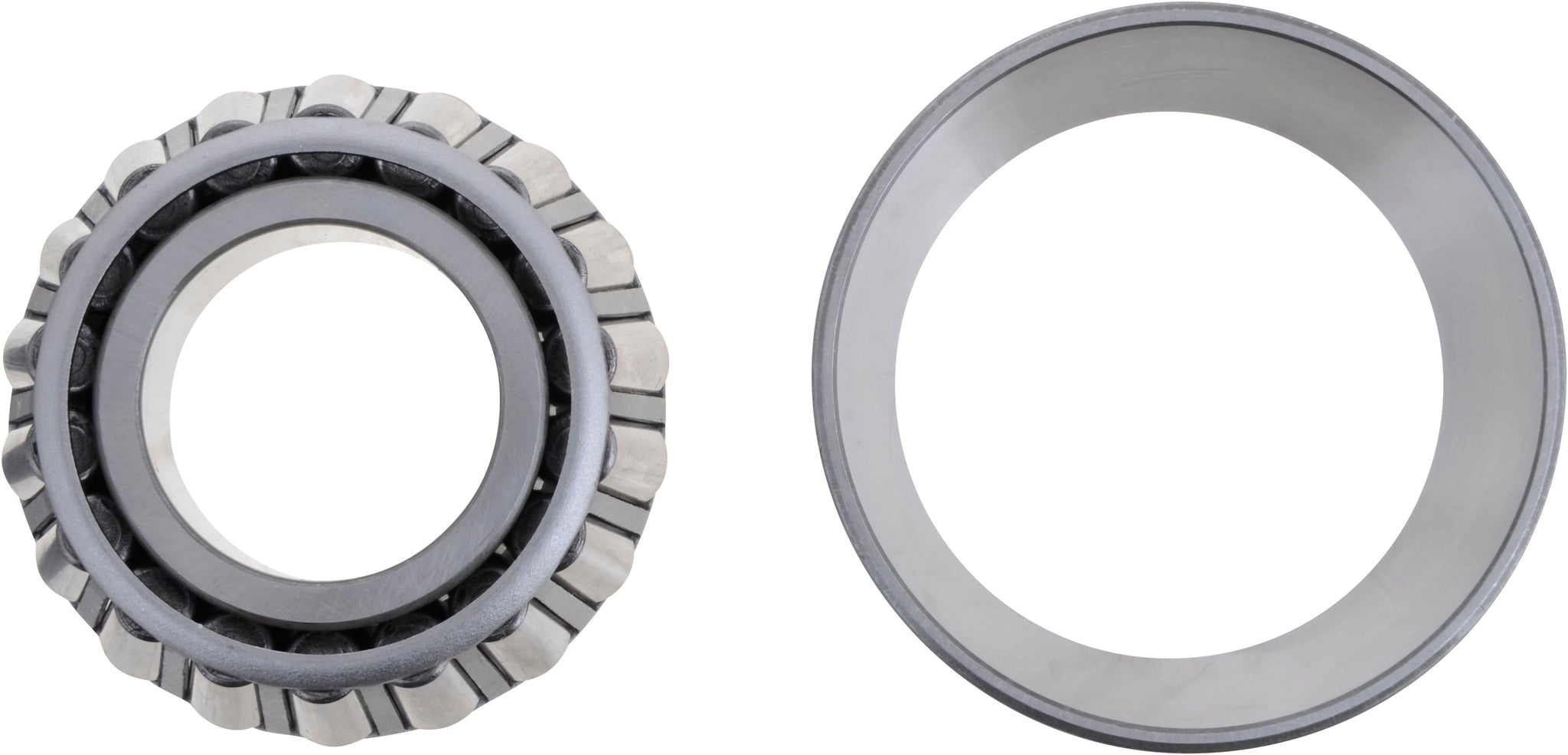

  • Inner pinion bearing set
  • 1.625" bearing ID
  • 3.500" bearing OD
  • (1) required per axle

Parts Included:

  • (1) bearing / cone (Koyo HM803146)
  • (1) bearing race / cup
    • Spicer 550361 (Koyo HM803110)

Fits:

  • Dana 60 axles
  • Dana Super 60 axles
  • Ultimate Dana 60 front and rear axles

Brand:

  • Dana Spicer

Part Number:

  • Dana Spicer 706046X

Warranty:

  • 6 month warranty and case by case basis.

    Demand genuine Spicer. Made in the USA and complete with all the components needed for the repair. Dana design, engineering, testing and manufacturing processes all work in conjunction with one another to ensure unparalleled performance that non-genuine parts simply cannot deliver.

    Demand genuine Spicer. Dana design, engineering, testing and manufacturing processes all work in conjunction with one another to ensure unparalleled performance that non genuine parts simply cannot deliver.

    Bearing Type: Pinion Head Bearing
    Cone Bore (IN): 1.625"
    Cone Bore (MM): 41.28
    Cone Length (IN): 1.16
    Cone Length (MM): 29.37
    Cup Length (IN): 0.91
    Cup Length (MM): 23.02
    Cup Outside Diameter (IN): 3.500"
    Cup Outside Diameter (MM): 88.90
    Design: Tapered Roller Bearing
    Housing Bore (IN): 3.500"
    Housing Bore (MM): 88.90
    Width (IN): 1.19
    Width (MM): 30.16
