Dana 60 / Dana 61 / Dana 70 / Dana 71 Pinion Yoke 1410 Series
Product Details:
- Axle pinion yoke
- 1410 series (SPL36)

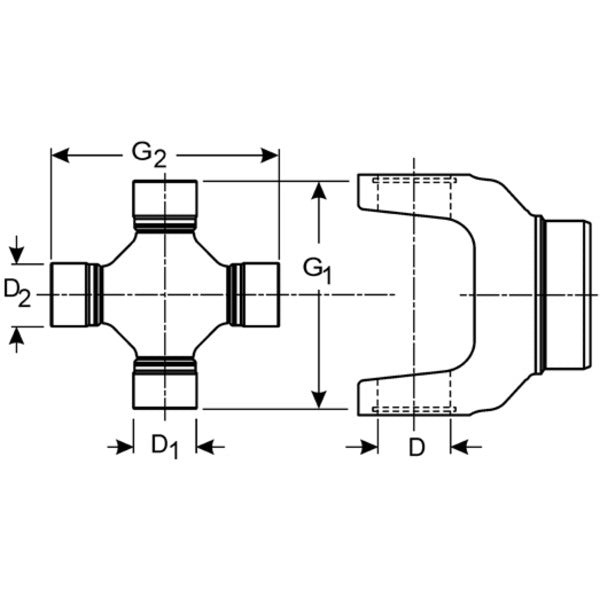

- 1.188" cap diameter (D1 and D2 on the diagram)
- 4.188" to the outside of the caps (G1 and G2 on the diagram)
- 1.875" seal surface diameter
- 29 spline
- Bolt and strap style
- ~30° joint angle possible with the correct mating parts
- Forge steel
Parts Included:
- (1) yoke
Fits:
- Dana 60
- Dana 61
- Dana 70
- Dana 71
Brand:
- Dana Spicer
Part Number:
- Dana Spicer 3-4-8731-1
Warranty:
- 6 month warranty and case by case basis.
